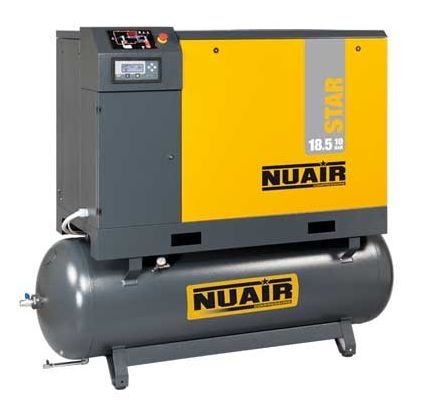

Nuair Star 7,5-22 kW csavarkompresszorok
Star 7,5-22 kW csavarkompresszorok.
| Tipus | Tartály | Légszállítás | Teljesítmény | Nyomás | Csatlakozás | Zajszint | Súly | Méret | |
|---|---|---|---|---|---|---|---|---|---|
| liter | liter/min | kW | LE | bar | " | dB | kg | mm. | |
| Alapgép | |||||||||
| Star 7,5-08-270 | 270 | 1250 | 7,5 | 10 | 8 | 3/4 | 62 | 350 | 1560x700x1580 |
| Star 7,5-10-270 | 270 | 1000 | 7,5 | 10 | 10 | 3/4 | 62 | 350 | 1560x700x1580 |
| Star 7,5-13-270 | 270 | 750 | 7,5 | 10 | 13 | 3/4 | 62 | 360 | 1560x700x1580 |
| Star 11-08-270 | 270 | 1650 | 11 | 15 | 8 | 3/4 | 65 | 363 | 1560x700x1580 |
| Star 11-10-270 | 270 | 1500 | 11 | 15 | 10 | 3/4 | 65 | 363 | 1560x700x1580 |
| Star 11-13-270 | 270 | 1150 | 11 | 15 | 13 | 3/4 | 65 | 363 | 1560x700x1580 |
| Star 7,5-08-500 | 500 | 1250 | 7,5 | 10 | 8 | 3/4 | 62 | 408 | 1980x700x1670 |
| Star 7,5-10-500 | 500 | 1000 | 7,5 | 10 | 10 | 3/4 | 62 | 408 | 1980x700x1670 |
| Star 7,5-13-500 | 500 | 750 | 7,5 | 10 | 13 | 3/4 | 62 | 439 | 1980x700x1670 |
| Star 11-08-500 | 500 | 1650 | 11 | 15 | 8 | 3/4 | 65 | 421 | 1980x700x1670 |
| Star 11-10-500 | 500 | 1500 | 11 | 15 | 10 | 3/4 | 65 | 421 | 1980x700x1670 |
| Star 11-13-500 | 500 | 1100 | 11 | 15 | 13 | 3/4 | 64 | 452 | 1980x700x1670 |
| Star 15-08-500 | 500 | 2150 | 15 | 20 | 8 | 3/4 | 65 | 443 | 1980x700x1670 |
| Star 15-10-500 | 500 | 1850 | 15 | 20 | 10 | 3/4 | 65 | 443 | 1980x700x1670 |
| Star 15-13-500 | 500 | 1550 | 15 | 20 | 13 | 3/4 | 65 | 443 | 1980x700x1670 |
| Star 18,5-08-500 | 500 | 2800 | 18,5 | 25 | 8 | 3/4 | 70 | 563 | 1980x730x1750 |
| Star 18,5-10-500 | 500 | 2500 | 18,5 | 25 | 10 | 3/4 | 70 | 563 | 1980x730x1750 |
| Star 18,5-13-500 | 500 | 2150 | 18,5 | 25 | 13 | 3/4 | 70 | 594 | 1980x730x1750 |
| Star 22-08-500 | 500 | 3350 | 22 | 30 | 8 | 3/4 | 71 | 568 | 1980x730x1750 |
| Star 22-10-500 | 500 | 3000 | 22 | 30 | 10 | 3/4 | 71 | 568 | 1980x730x1750 |
| Star 22-13-500 | 500 | 2400 | 22 | 30 | 13 | 3/4 | 71 | 599 | 1980x730x1750 |
| Inverteres csavarkompresszorok | |||||||||
| Star 11-08-270 VS | 270 | 1650/660 | 11 | 15 | 8 | 3/4 | 63 | 371 | 1560x700x1580 |
| Star 11-10-270 VS | 270 | 1500/600 | 11 | 15 | 10 | 3/4 | 63 | 371 | 1560x700x1580 |
| Star 11-08-500 VS | 500 | 1650/660 | 11 | 15 | 8 | 3/4 | 63 | 429 | 1560x700x1580 |
| Star 11-10-500 VS | 500 | 1500/600 | 11 | 15 | 10 | 3/4 | 63 | 429 | 1560x700x1580 |
| Star 22-08-500 VS | 500 | 3350/1340 | 22 | 30 | 8 | 3/4 | 71 | 595 | 1980x730x1750 |
| Star 22-10-500 VS | 500 | 3000/1200 | 22 | 30 | 10 | 3/4 | 71 | 595 | 1980x730x1750 |
